Professional USB-C E-Marker & Cable Diagnostic Analyzer

Core Engineering Features
⚡ S-PSM Adaptive Signal Integrity Algorithm

• Full-matrix 24-pin mapping for open, short, and crossover fault detection.

• High-precision analysis for HDMI, specialized adapters, and custom Type-C interconnects.

• Extended Voltage Tolerance: +5V to +48V safe-operating range.

Advanced Diagnostic Capabilities

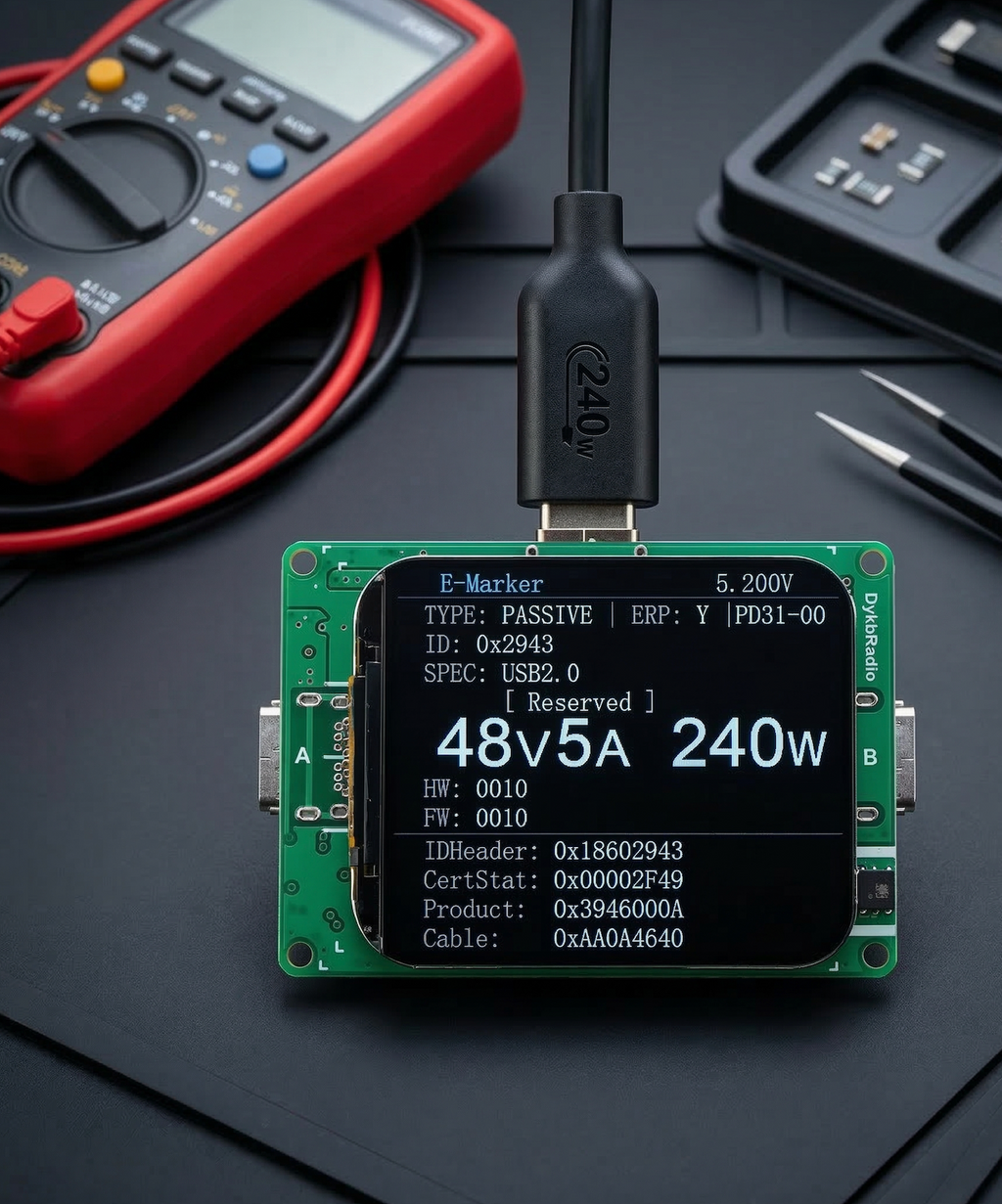

✅ Silicon Identification: Instant eMarker chip data retrieval and PD protocol verification.
✅ Logic Analysis: Rp/Rd pull-up/pull-down resistance measurement.
✅ Impedance Profiling: Dual-threshold (Low/High) sensing for parasitic capacitance and leakage.
✅ Structural Mapping: Detailed visualization of internal wire-group bonding and shielding.

Hardware Specifications
🔧 High-Resolution IPS Display: Real-time data visualization with gravity-sensing orientation.
🔧 Environmental Monitoring: Integrated sensors for ambient temperature and humidity calibration.
🔧 Power Management: Low-current sleep mode with rapid wake-up functionality.

Operational Analysis Modes

1. N-Mode (Low-Impedance): Standard continuity testing for conductor integrity (<100KΩ).

2. H-Mode (High-Impedance): Sensitivity-optimized detection for capacitive coupling and insulation breakdown.

3. G-Mode (Group Topology): Logical grouping of CC, VBUS, GND, and Data lines for rapid fault isolation.

4. D-Mode (Differential Mapping): Precise pin-to-pin cross-reference for non-standard cable assemblies.

5. S-Mode (System Calibration): Automated self-diagnostic routine to ensure measurement accuracy.

Technical Highlights
✔️ Optimized for PD 3.1 (Extended Power Range) verification.
✔️ Essential for hardware R&D, manufacturing QA, and professional field repair.
✔️ Ultra-portable form factor with industrial-grade measurement precision.
